Web Parameters Slide Actions, Local Parameters

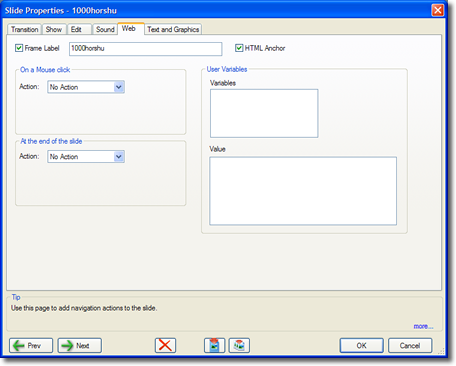

The Web tab provides control of a variety functions. The Web tab is shown below.

Web Tab

The Web tab now contains new features plus new actions.

These include:

•  Frame label
•  HTML Anchor
•  On Click Action
•  On end of slide Action
•  User defined text variable

Frame Label

A Fame label is a property of a frame in a Flash movie.  Checking the Frame Label box will assign the name entered in the associated text box as the Frame label. The default name is the slide name without its extent ion.  The label can be read and acted upon by Java Script and many third party Flash tools to provide direct access and navigation to entry points in your Flash movie.

Every slide has a default Frame Label name assigned to it.  The default will be the file name (no path or extension).

Selecting the Frame Label check box will include the Frame Label in the Flash movie.  The Frame Label may be given any name you choose by entering it in the text box to the right of the Frame label check box.

HTML Anchor

The HTML anchor represents an entry point into the SWf file that can be targeted by a URL. Selecting the HTML anchor box will create an HTML anchor with the same name as the Frame label.

For example www.magematics.com/show.htm#entry slide(there is no show here)

Would call the HTML page show and jump to the slide named entry slide on the Web tab of the target slide.

The # designates and anchor.

NOTE: This is a very powerful feature. It allows slide shows to call slide shows and specify the entry slide. This can be tied to parameters and templates to create very sophisticated hypermedia.

On Mouse Click

The On Mouse Click panel defines the action applied if a slide is clicked on. The Action pull down menu selection determines the action carried out on the mouse click. Click here for a full description of all the available actions.

At the End of the Slide Action

The at the end of the slide panel determines the action taken at the end of a slides duration. The Action pull down menu selection determines the action carried out on the mouse click. Click here for a full description of all the available actions.

User Variables

The User variable panel supports the creation of "user variables" whose values that can be inserted in text boxes. These can be repeatedly used text phrases or complex URL designations. User Variables are initial defined in the Show Properties Web tab. Variables that are marked for Slide Specific Use are listed in the User Variable Panel.

To assign a slide specific value to a variable click on the variable name then enter the value in the Value text box.

The illustration below shows an example creating a User Variable.
